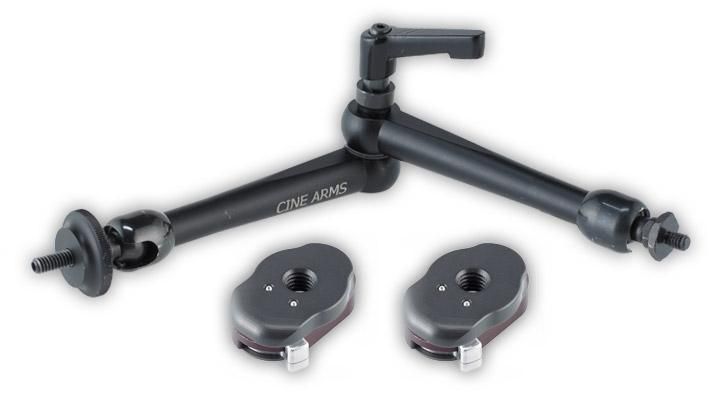

Noga DG Cine Arm 1/4" & Cine Lock Kit 2

The 16x9 Inc. Cine Arm & 16x9 Cine Lock will speed up camera set ups and break downs by eliminating laborious and time consuming threading.

DG Cine Arm 1/4"

The heart of the device is its single central locking lever that simulatenously locks all 3 joints. Accessories mount via a standard 1/4" screw (top arm) and 1/4" screw (bottom arm). It's new, improved central mechanism—a kip lever—is designed to more quickly and easily lock or release the arm's 3 articulated joints. What's more, the new lever provides even greather holding strength. Additionally, the 16x9 Inc. Cine Arm has been redesigned with equal length on both sides of the arm for increased strength and holding resistance.

Cine Lock

The 16x9 Inc. Cine Lock is a conveniant new quick-release mounting device designed to work with all Noga Articulating arms. By sliding the dove-tail to the wedge plates, the unit is locked into place. Simple and easy to use, the Cine Lock speeds up camera set ups and break downs on set by eliminating laborious and time consuming threading. The system mounts quickly and effortlessly onto virtually all 1/4" - 20 and 3/8" threaded female threaded surfaces.

• 1 - DG1108CA Cine Arm
• 2 - Cine Locks

DG Cine Arm

• Central locking knob
• Kip Lever
• Lightweight
• Rugged construction

Cine Lock

• Lightweight

• Secure Mount

• Rugged Construction
• Lightweight

• Allows for Fast Mounting/Removal

• Mounts onto virtually all 1/4" & 3/8" threaded female surfaces

DG Cine Arm

Arm Top: 1/4" - 20 screw plus nut Arm Bottom: 1/4" - 20 screw Extended Length 9.125" [23.1 cm] Maximum Load Capacity 10 lb. [4.5 kg] Weight 11 oz. [311 g]

Cine Lock

Weight: 1.8 oz [51 g]
